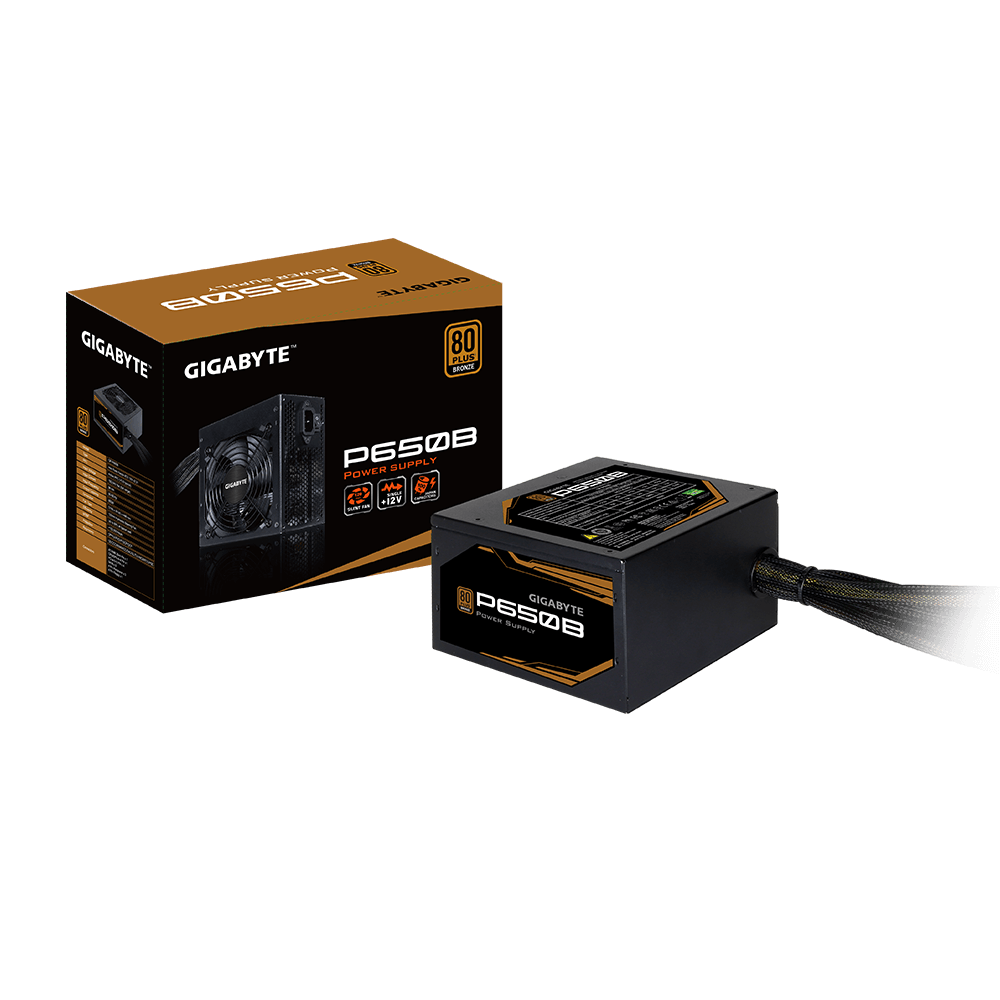

GIGABYTE 650 Watt 80 PLUS bronze SMPS

P650B POWER SUPPLY

  • 80 PLUS bronze certified: up to 89% efficiency
  • 100% Japanese Capacitors
  • 120mm Hydraulic Bearing (HYB) Fan
  • Single +12V rail
  • Meet ErP LOT6 2013 (< 0.5W at standby mode)
  • OPP/UVP/OVP/SCP/OCP protection
  • 3 years warranty (Adjusted according to different regions)



Description

Model P650B
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 9A-4A
Input Frequency 50-60 Hz
Output Capacity 650W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing Fan
Efficiency Up to 85% at typical load
MTBF >100,000 hours
Protection OPP/UVP/OVP/SCP/OCP
Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Connectors ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
