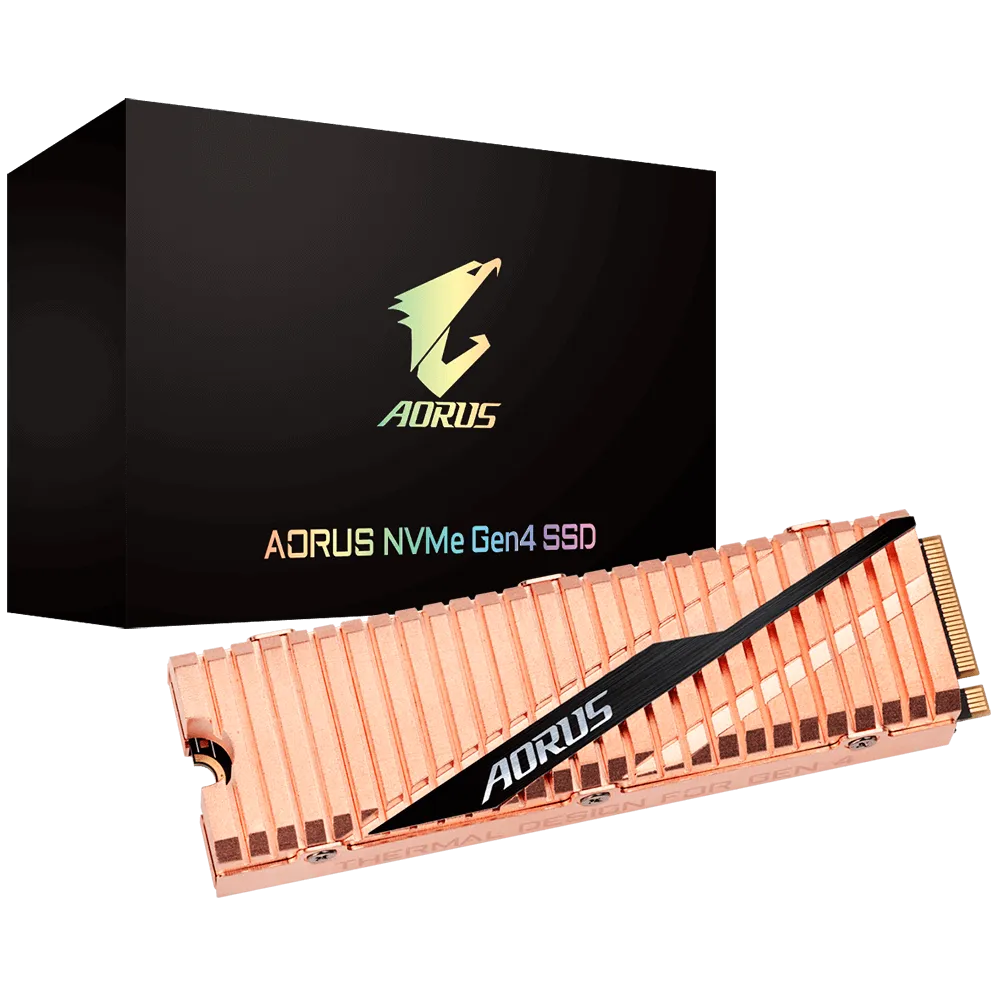

GIGABYTE AORUS 1TB M.2 NVMe Gen4 SSD

  • Form Factor: M.2 2280
  • Interface: PCI-Express 4.0 x4, NVMe 1.3
  • Total Capacity: 1000GB*
  • Sequential Read Speed : up to 5000 MB/s**
  • Sequential Write speed : up to 4400 MB/s**
  • Wear Leveling, Over-Provision technologies
  • TRIM & S.M.A.R.T supported
  • Fully Body Copper Heat Spreader
  • Warranty: Limited 5-years

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

Description

Interface: PCI-Express 4.0×4, NVMe 1.3

Form Factor: M.2 2280

Total Capacity: 1000GB

Warranty: Limited 5-years or 1800TBW

NAND: 3D TLC Toshiba BiCS4

External DDR Cache: DDR4 1GB

Sequential Read speed: Up to 5000 MB/s

Sequential Write speed: Up to 4400 MB/s

Random Read IOPS: up to 750k

Random Write IOPS: up to 700k

Dimension: 80.5 x 11.4 x 23.5 mm

Mean time between failure (MTBF): 1.77 million hours

Power Consumption (Active): Average: R : 6.6W; W : 6.4W

Power Consumption (Idle): 18.8mw

Temperature (Operating): 0°C to 70°C

Temperature (Storage): -40°C to 85°C

Note:
* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* TBW (Terabyte Written):Terabytes Written” is the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 5 years or 1800TBW, whichever comes first.
