Description
|
CPU |
1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
|
|
2. L3 cache varies with CPU |
| (Please refer “CPU Support List” for more information.) | |
|
Chipset |
1. Intel® B365 Express Chipset |
|
Memory |
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
|
|
2. Dual channel memory architecture |
| 3. Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. | |
| (Please refer “Memory Support List” for more information.) | |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.2. | |
| Maximum shared memory of 1 GB | |
| Actual support may vary by CPU | |
|
Audio |
1. Realtek® ALC887 codec |
|
|
2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
|
LAN |
1. Realtek® GbE LAN chip (10/100/1000 Mbit) |
|
Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 |
|
|
2. 1 x PCI Express x1 slot |
| (All of the PCI Express slots conform to PCI Express 3.0 standard.) | |
|
Storage Interface |
Chipset: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) | |
| 2. 4 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel® Optane™ Memory | |
|
USB |
Chipset: |
| 1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
|
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
|
|
2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 1 x M.2 Socket 3 connector | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x USB 3.1 Gen 1 header | |
| 10. 2 x USB 2.0/1.1 headers | |
| 11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 12. 1 x serial port header | |
| 13. 1 x Clear CMOS jumper | |
|

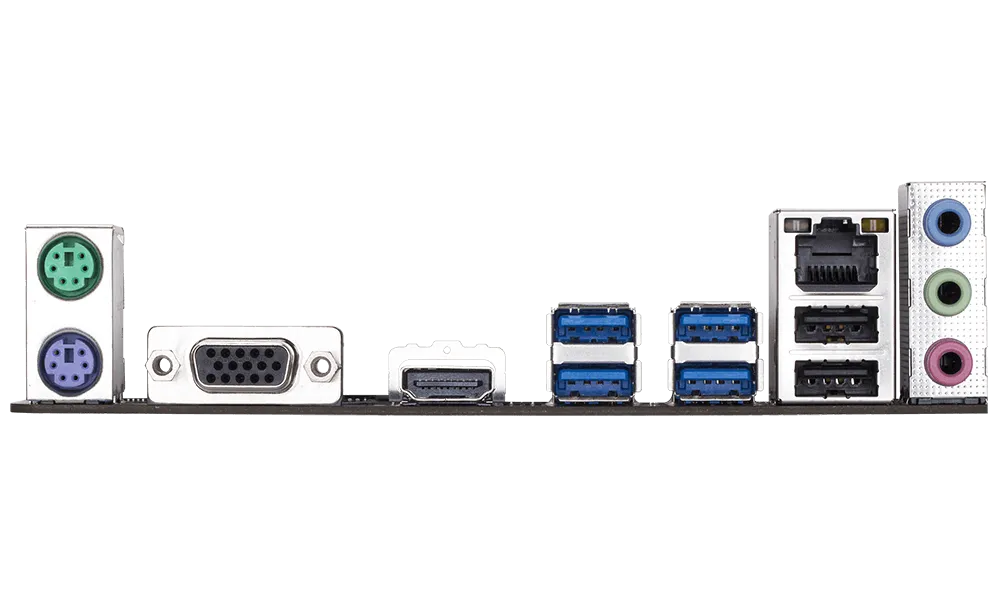

Back Panel Connectors |
1. 1 x PS/2 mouse port |
|
|
2. 1 x PS/2 Keyboard port |
| 3. 1 x D-Sub port | |
| 4. 1 x HDMI port | |
| 5. 4 x USB 3.1 Gen 1 ports | |
| 6. 2 x USB 2.0/1.1 ports | |
| 7. 1 x RJ-45 port | |
| 8. 3 x audio jacks | |
|
I/O Controller |
1. iTE® I/O Controller Chip |
|
H/W Monitoring |
1. Voltage detection |
|
|
2. Temperature detection |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
|
BIOS |
1. 1 x 128 Mbit flash |
|
|
2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Unique Features |
1. Support for APP Center |
|
|
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Easy RAID | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Platform Power Management | |
| RGB Fusion | |
| Smart Backup | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
|
Bundle Software |
1. Norton® Internet Security (OEM version) |
|
|
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility |
|
Operating System |
1. Support for Windows 10 64-bit |
|
Form Factor |
1. Micro ATX Form Factor; 22.6cm x 18.5cm |
|
Remark |
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. |
|
|
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
