| CPU |
1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
| 2. L3 cache varies with CPU |
| Chipset |
Intel® Z490 Express Chipset |
| Memory |
1. Intel® Core™ i9/i7 processors: |
| DDR4 4400(O.C.)/ 4333(O.C.)/4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666 / 2400 / 2133 MHz memory modules |
| 2. Intel® Core™ i5/i3/Pentium®/Celeron® processors: |
| Support for DDR4 2666/2400/2133 MHz memory modules |
| 3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 4. Dual channel memory architecture |
| 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 7. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz |
| * The DVI-D port does not support D-Sub connection by adapter. |
| 2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| 3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
| * Support for HDMI 1.4 version and HDCP 2.3. |
| Support for up to 3 displays at the same time |
| Maximum shared memory of 512 MB |
| Audio |
1. Realtek® ALC887 codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. |
| LAN |
1. Intel® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| 3. 1 x PCI Express x1 slot |
| (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface |
Chipset: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) |
| 2. 6 x SATA 6Gb/s connectors |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. |
| USB |
|
| Chipset: |
| 1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| 3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| 4. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header |
| 4. 3 x system fan headers |
| 5. 1 x addressable LED strip header |
| 6. 1 x RGB LED strip header |
| 7. 6 x SATA 6Gb/s connectors |
| 8. 1 x M.2 Socket 3 connector |
| 9. 1 x front panel header |
| 10. 1 x front panel audio header |
| 11. 1 x USB 3.2 Gen 1 header |
| 12. 2 x USB 2.0/1.1 headers |
| 13. 2 x Thunderbolt™ add-in card connectors |
| 14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 15. 1 x serial port header |
| 16. 1 x Clear CMOS jumper |
| 17. 1 x Q-Flash Plus button |

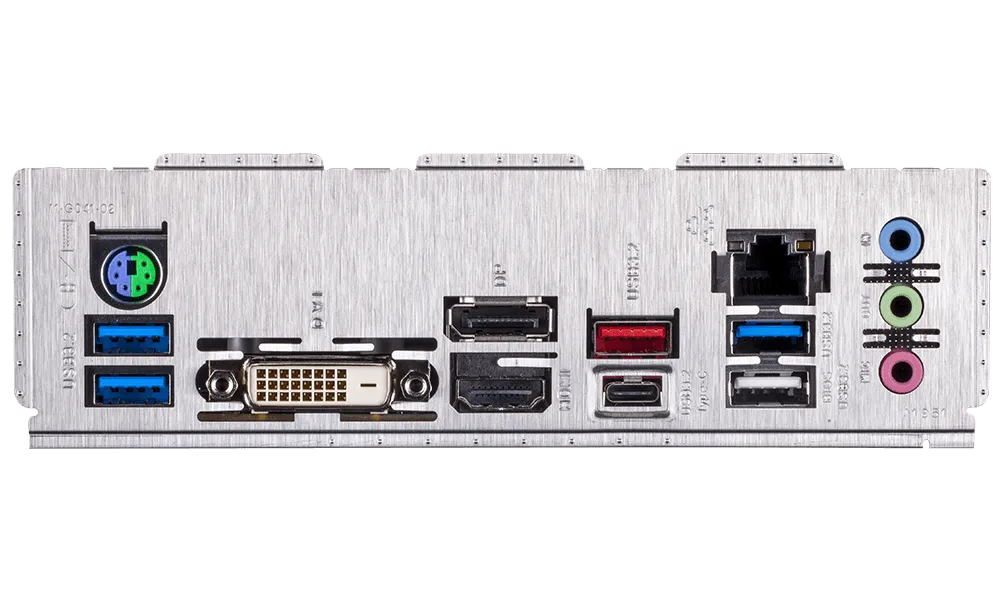

| Back Panel Connectors |
1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x DVI-D port |
| 3. 1 x DisplayPort |
| 4. 1 x HDMI port |
| 5. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support |
| 6. 1 x USB 3.2 Gen 2 Type-A port (red) |
| 7. 4 x USB 3.2 Gen 1 ports |
| 8. 1 x RJ-45 port |
| 9. 3 x audio jacks |
| I/O Controller |
1. iTE® I/O Controller Chip |
| H/W Monitoring |
1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Overheating warning |
| 5. Fan fail warning |
| 6. Fan speed control |
| * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS |
1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| RGB Fusion |
| Smart Backup |
| System Information Viewer |
| 2. Support for Q-Flash Plus |
| 3. Support for Q-Flash |
| 4. Support for Xpress Install |
| Bundled Software |
1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed |
| Operating System |
Support for Windows 10 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Note |
***Features, Price and Specifications are subject to change without notice. |
